2017 Toyota 4Runner 17x9.0

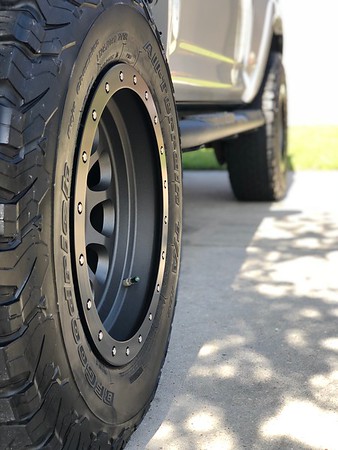

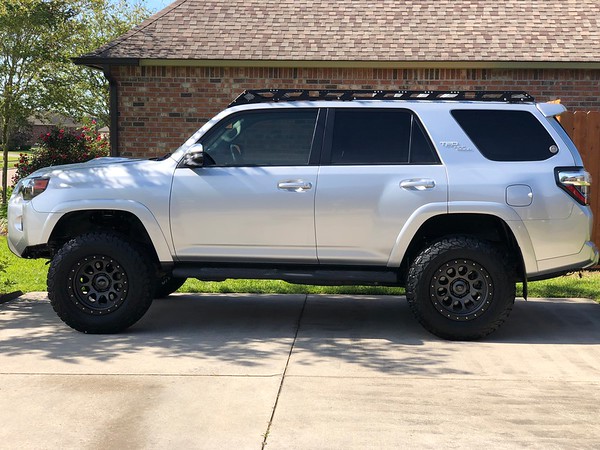

photo 1 Toyota 4Runner custom wheels   17x9.0, ET -38, tire size 285/70 R17. x ET photo 2 Toyota 4Runner custom wheels   17x9.0, ET -38, tire size 285/70 R17. x ET

Custom wheels & tires for Toyota 4Runner

Make Toyota (1415 cars)
Model 4Runner (109 cars)
Year 2017 (4 cars)
Front & rear rim size

17x9.0

Front & rear rim offset

-38

Front & rear tire size

LT 285/70 R17

Wheel backspacing

3.5”

Bolt pattern

6x139.7

Rims brand
Wheel Manufacturer & Model

SCS

Ray 10
See price:
Amazon
Tire brand
Tire Manufacturer & Model

BFGoodrich


All-Terrain T/A KO2
See price:
Amazon   Tire Rack

All-Terrain T/A KO2
See price:
Amazon   Tire Rack

Source

2017 TRD ORP
3” OME lift
2884 friont coils
2889 rear coils
SPC upper control arms @ +2 deg caster
SCS Ray10 17x9, 3.5” bs, -38 offset
BFG KO2 285/70/17

Wheels are SCS Ray 10 in matte gunmetal. These are the 17x9, 3.5” backspacing, -38 offset. Its comparable to running their 17x8.5 -10 WITH a 1.3” spacer. I had to remove the mudflaps and do a very aggressive BMC(thanks SSO), and I opted to do a conservative high clearance type cut on front bumper and well liners. No rubbing on or offroad after BMC.

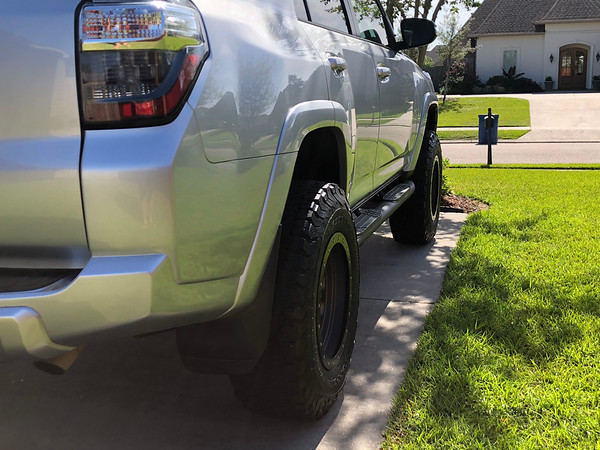

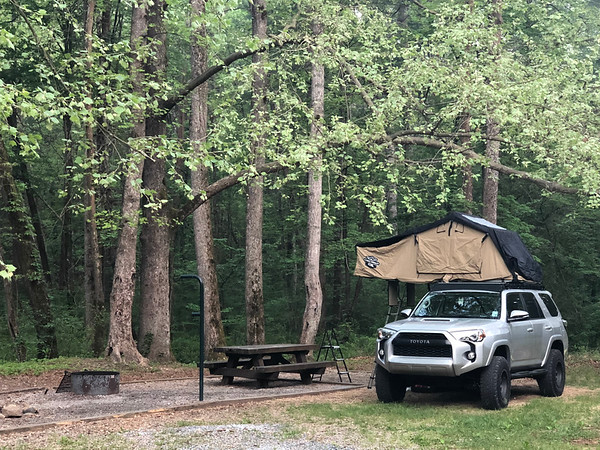

photo 3 Toyota 4Runner custom wheels   17x9.0, ET -38, tire size 285/70 R17. x ET photo 4 Toyota 4Runner custom wheels   17x9.0, ET -38, tire size 285/70 R17. x ET
Add your car build

Definitions

Wheel Offset

Refers to how your car’s or truck’s wheels and tires are mounted and sit in the wheel wells.

– Zero wheel offset is when the hub mounting surface is in line with the centerline of the wheel.
– Positive wheel offset is when the hub mounting surface is in front (more toward the street side) of the centerline of the wheel. Most wheels on front-wheel drive cars and newer rear-drive vehicles have positive offset.
– Negative offset is when the hub mounting surface is behind the wheel centerline. “Deep dish” wheels are typically a negative offset.
